Parflux Sediment Trap（Mark 78H-21）

Time-series sediment traps were the original McLane Research Laboratories product line when the company was founded in 1983.

Product Description Time-series sediment traps were the original McLane Research Laboratories product line when the company was founded in 1983.

Sediment Traps collect vertically settling particles into individual sample bottles which are sealed when not in collection mode.

Our traps provide exceptional performance for biogeochemical studies including radionucleide, paleoproxy, carbon cycle analysis. They are also beneficial for environmental and pollution monitoring.

Advantage Characteristics

Technical Parameter

Related Papers

Advantage Characteristics

Titanium frame and electronics housing for best corrosion resistance Polycarbonate hexagonal baffle Sample bottles tested in 90 degree configuration to ensure sample collection

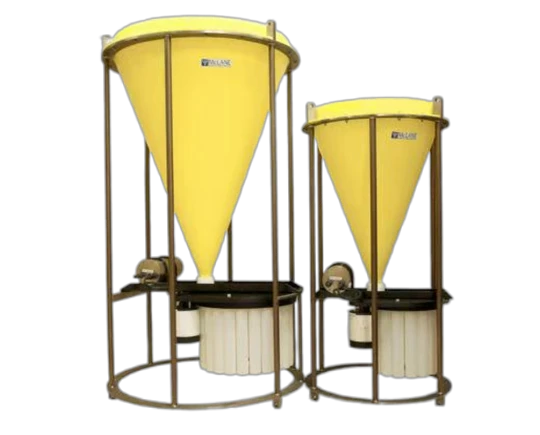

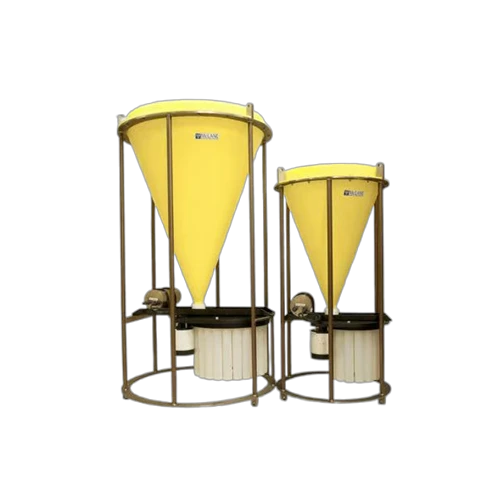

Time-series sampling is pre-programmed or triggered adaptively Parflux 78H Sediment Traps have 13 or 21 sample bottles of 250 ml or 500 ml Parflux 8-13 model is half the size of the Parflux 78H for easier handling and deployment

Technical Parameter

DIMENSIONS Diameter: 91 cm (35.8 in) Height: 164 cm (64.5 in)
WEIGHT APPROX (NO BRIDLE) In air, 500 ml bottles full: 72 kg (159 lbs) In water, 500 ml bottles full: 25 kg (55 lb)
SAMPLE COLLECTION Number of samples: 21 or 13 (wider bottle) Bottle volume: 250 or 500 ml (21 samples) 500 ml (13 samples, wider bottles) Aperture area and diameter: 0.5 m2 , 80 cm Baffle material: Polycarbonate, 1.0 mm wall thickness Cone material: Natural polyethylene internal coating Baffle cells: Approx. 368, 2.5 cm diameter Aspect ratio of cell (h/d): 2:5 Included cone angle: 41°
ROTARY ASSEMBLY Drive motor type: Electronic stepper motor Drive train: Direct gear train
CONTROLLER Pressure housing: Titanium, 316 SS fasteners Communications: Serial (RS-232), Ethernet (optional)
OPERATIONS Maximum depth: 7,000 m (10,000 m model is available) Battery: 14 user replaceable “C” cell alkaline batteries Maximum deployment time: 18 months Operating temperature: -4°C to 35°C (in water nonfreezing) Storage temperature: -20°to 45°C (in air)
FRAME Material: Titanium, Grade 2 Bridle eyes: 16 mm (5/8”), insulated Fasteners: 316 SS isolated
