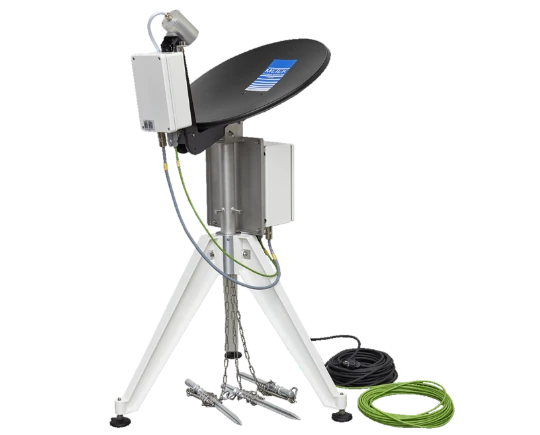

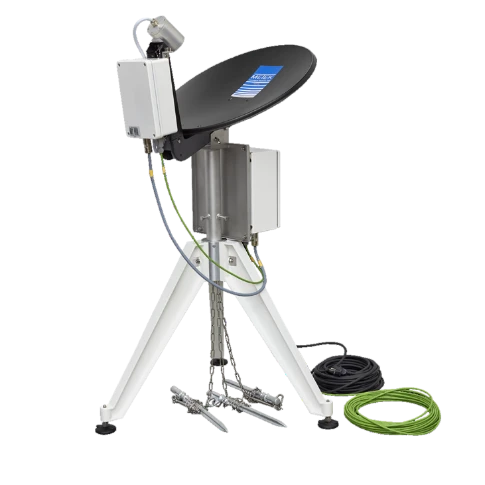

Micro Rain Radar (MRR-PRO)

The Micro Rain Radar (MRR-PRO) instrument is made by Metek.

Product Description The newly developed hardware of the MRR-PRO combines the unique Micro Rain Radar technique of the MRR-2 and a high performance processing unit which significantly improves all operating parameters. The system allows precise measurements of the Doppler spectra caused by hydrometeors and yields the rain rate, liquid water content and drop size distribution for the liquid phase. All computations including automatic melting zone detection are integrated in the outdoor electronics. The system has been evolved to be a powerful stand-alone profiler for investigations of precipitation and cloud dynamics with very low installation and logistics effort.

Advantage Characteristics

Technical Parameter

Application Scope

Classic Cases

Advantage Characteristics

Automatic melting layer detection Improved attenuation correction Convenient user interface Data protocols include NETCDF Web interface Stand-alone system with completely integrated data evaluation

Advanced processing hardware for Micro Rain Radar technique Vertical profiling of drop size distribution, rain rate and liquid water content Up to 254 height ranges Minimum height resolution 10 m Minimum averaging intervals 1 s

Technical Parameter

Range resolution > 10 m
Operating frequency 24,23 GHz (K-band)
Sampling frequency 500 kHz
Number of range gates min. 30 - max. 254
Acquisition time for one set of spectra ≥ 1.6 ms
Time interval for averaged spectra ≥ 1 s
Velocity resolution 0.05 - 6.00 m/s
Nyquist velocity range 12.3 - 96.3 m/s
Duty cycle (net-sampling time in one averaging interval) > 99%
Min. detectable radar reflectivity (z=1000 m, Δz=100 m, Δt=60 s) - 8 dBZ
