Remote Access Sampler（RAS-500)

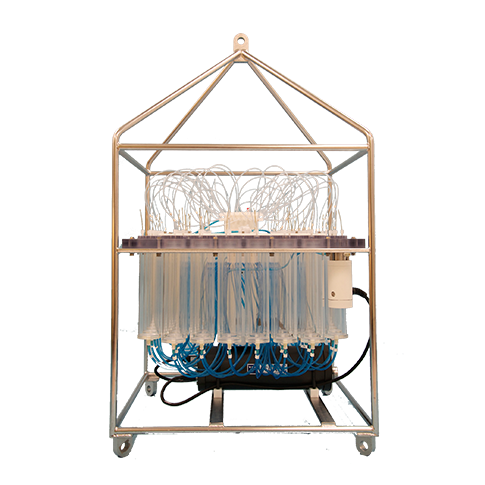

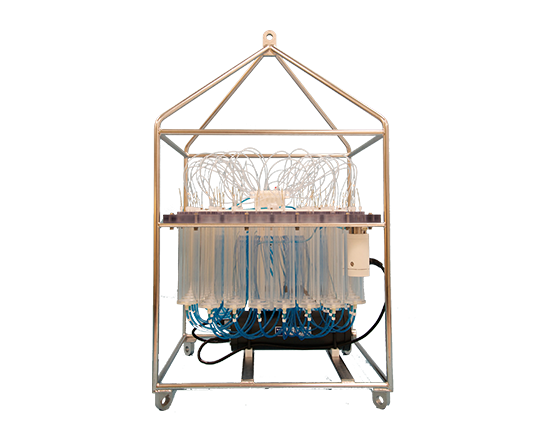

Product Description The Remote Access Sampler (RAS-500) is a deep ocean or coastal time-series water sampler that autonomously collects pure, unbiased specimens using a user-defined sample schedule. The RAS-500 collects ambient water and suspended material in individual clear or opaque sample bags for biological, dissolved major and minor nutrient, dissolved trace metal, or dissolved organic carbon analysis.

Advantage Characteristics

Technical Parameter

Related Papers

Advantage Characteristics

Optional programmable biofouling pre- and post- acid flushes clean intake Sample collection with or without pre-filters

Number of samples: 48 with 500 ml sample bags Power: 24 user replaceable “D” cell alkaline batteries Patented multi-port valve isolates each sample

Technical Parameter

DIMENSIONS
Height 128 cm (50 in)
Width 73 cm (29 in)
Length 73 cm (29 in)
WEIGHT (APPROX)
In air (sample tubes empty) ~110 kg (240 lbs)
In air (sample tubes filled) ~148 kg (325 lbs)
In water ~57 kg (125 lbs)
MULTI-PORT VALVE
Number of ports 50 (48 samples)
Material HYDEX plastic valve stators and Kynar plastic rotor
Drive High torque stepper motor with 100:1 planetary gear head
Positioning Optical sensor with slotted disk
SAMPLE BAGS (48)
Size Approximately 500 ml
Material 2 mil Tedlar® (clear), 4 mil Mylar laminated (opaque) or 4 mil Kynar (clear)
PUMP
Flow rate 75 ml/min fixed rate (±3% error)
Type Gear pump
Drive Brushless 3 phase DC motor
CONTROLLER
Pressure housing Aluminum, 6061-T6 hard coat anodized
Power supply 36 VDC
Power consumption 3.5 Ah (1 year deployment)
Communications Serial (RS-232)
OPERATIONS
Maximum depth 5,500 m
Battery 24 user replaceable “D” cell alkaline batteries
Min/Max deployment time 10 minutes per sample/18 months
Operating temperature 0°to 35°C
FRAME
Material 316 electro-polished stainless steel (titanium available)
Structure & bridle configuration In-line mooring, weldment, 4 in-line
Frame & bridle eyes 19 mm (3/4”), insulated
Maximum in-line tension 2,300 kg (5,000 lbs)
